Smart Sensor


A multipurpose board that interfaces with a line-following array, potentiometers, and limit switches.

As an interface with various sensors, the Smart Sensor Board connects the Arduino Pro Micro to a five-pin screw terminal. One Smart Sensor Board board can connect to up to three sensors, provided they are of the same type and require only one I/O line.


The Sensors

List of Available Sensors

Limit Switch

A Limit Switch is a button. It is a passive component, so it requires a pull up network. The level acts as a button to connect the two terminals.


Potentiometer

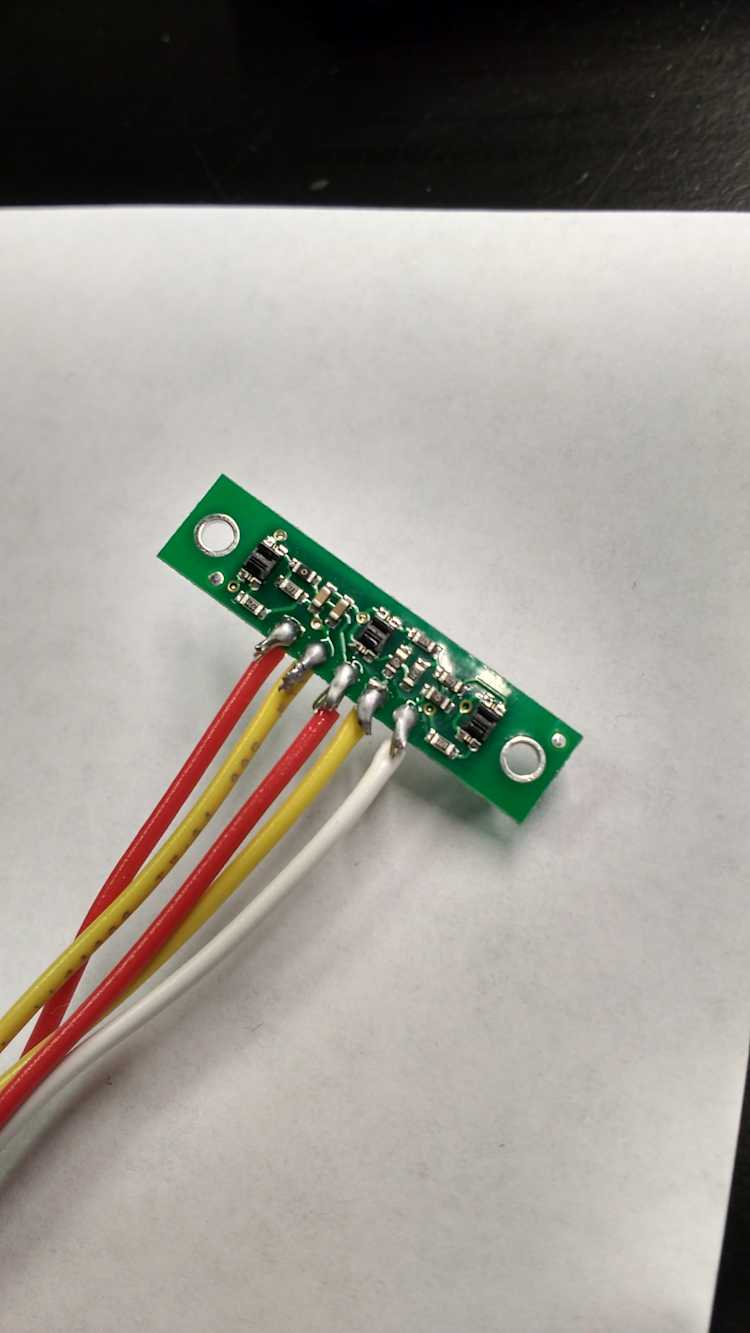

Line Follower

The Line Follower is the only active sensor. This means it requires 5 Volts power. It works by shining Infrared light downwards, and then reading how much is reflected back. The tape we use is very reflective, so the line following will only work right on top of the tape.

Active vs. Passive Sensor

Active sensors require power to operate. There is some regulated output and sensed input that runs the sensor.

Passive means that it does not require dedicated power, and runs off pull up networks.

  • The 5V Jumper on the board is necessary for the passive sensors.

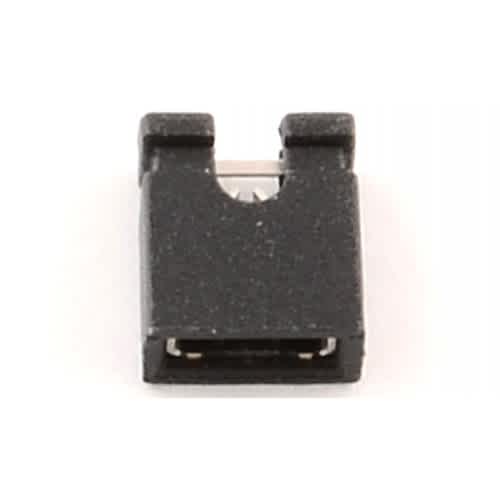

A jumper looks like this:

What is a Pull Up Network?

A Pull Up Network is a part of a circuit that pull up the voltage at a node to a “High” Voltage so the Arduino can read the input as a Voltage.


Wiring

Passive: image

Active Sensor-interface setup:

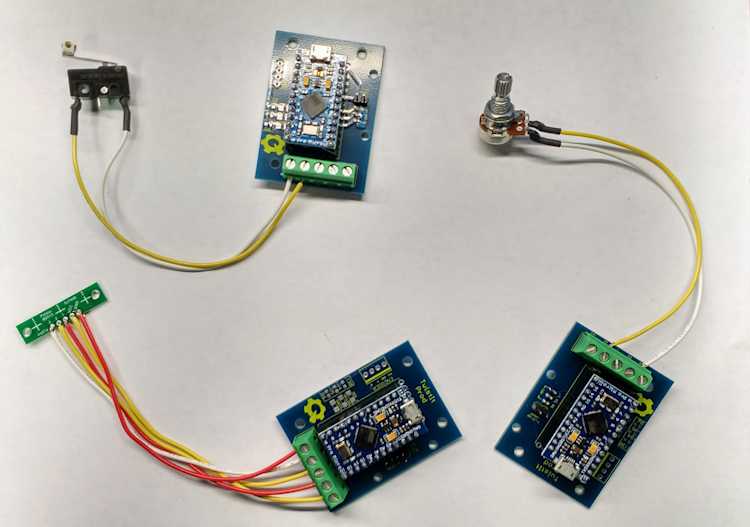

Block Examples:

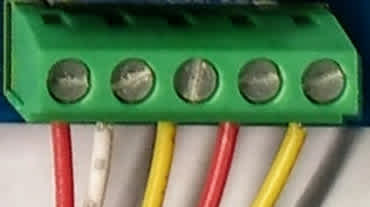

Screw Terminal:

For the screw terminal: going from right to left: 5V, A1, A2, A3, GND.
